光電式液位傳感器LLM12DH05 國產替代美國GEMS捷邁ELS系列
- 品牌：???錦鋒
- 型號：???光電式液位傳感器LLM12DH05

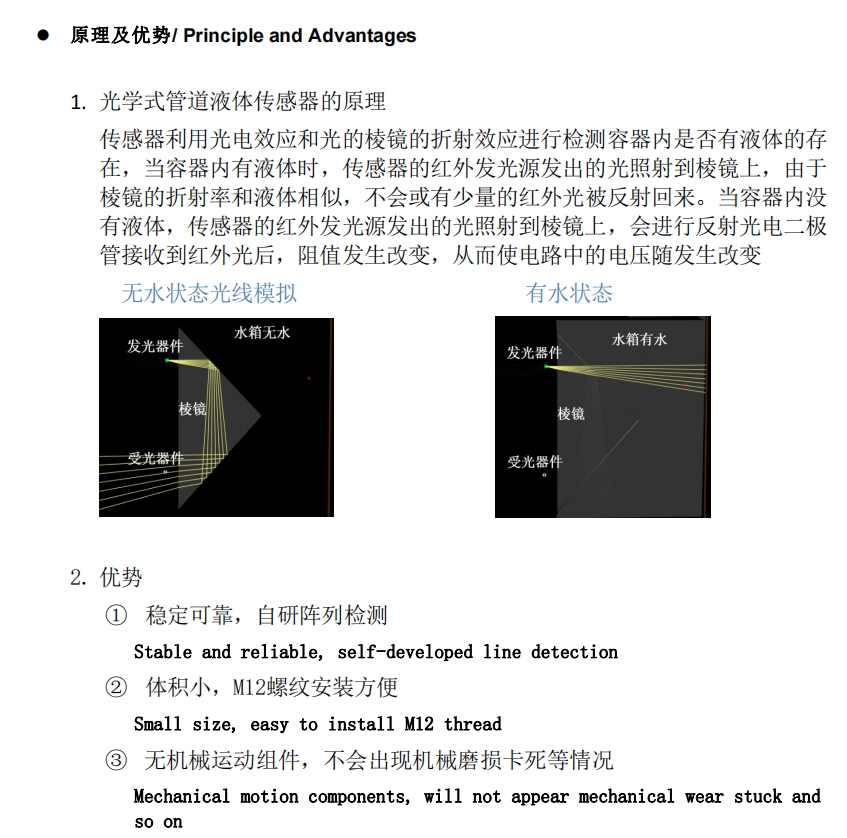

LLM12DH05光電液位傳感器是利用光在兩種不同介質界面發生反射折射原理，是一種新型接觸式點液位測控裝置。可以單點檢測，TTL兼容數字電平信號輸出.
? 應用鄰域 / Application
魚缸/ fish tank
熱水器/ water heater
咖啡機/ Coffee machine
小家電/ Household electrical appliances
需要檢測液體的設備……/ Equipment that needs to be tested for liquids......
? 產品特性/ Product features
無機械運動結構，不存在卡死等諸多問題，檢測可靠性高
There is no mechanical movement structure, there are no problems such as jamming, and
the detection reliability is high
可選擇多種材質應對您所需檢測的液體
Choose from a variety of materials to suit the liquid you need
檢測精度高，重復性好，相應快速
The detection accuracy is high, the repeatability is good, and the corresponding is fast
無需用戶處理復雜數據，使用方便
I It is easy to use without the need for users to deal with complex data
LLM12DH05光電式液位傳感器國產替代美國GEMS捷邁ELS系列型號：
ELS-系列
LLM12DH05替代GEMS捷邁ELS-950系列高強度光電液位傳感器常用型號ELS-950 P/N:224504，ELS-950 P/N:224501，ELS-950 P/N:224508，ELS-950 P/N:224505，ELS-950 P/N:224502，ELS-950 P/N:224503，ELS-950 P/N:224509，ELS-950 P/N:224510，ELS-950 P/N:224506，ELS-950 P/N:224503，ELS-950 P/N:224510，ELS-950 P/N:224507，ELS-950 P/N:223625，ELS-950 P/N:224511
LLM12DH05替代GEMS捷邁ELS-950M光電液位開關部件號ELS-950M P/N:232175,ELS-950M P/N:232171,ELS-950M P/N:232179,ELS-950M P/N:232176,ELS-950M P/N:232172,ELS-950M P/N:232180,ELS-950M P/N:232177,ELS-950M P/N:232173,ELS-950M P/N:232181,ELS-950M P/N:232178,ELS-950M P/N:232174,ELS-950M P/N:232182
LLM12DH05替代GEMS捷邁ELS-1100通用型光電液位開關ELS-1100 PN:138167 ELS-1100 PN:144225,ELS-1100 PN:144235,ELS-1100 PN:166541,ELS-1100 PN:142700,ELS-1100 PN:143585,ELS-1100 PN:157750,ELS-1100 PN:143580 ELS-1100 PN:169555,ELS-1100 PN:143577,ELS-1100 PN:143570,ELS-1100 PN:143590,ELS-1100 PN:175632,ELS-1100 PN:143575,ELS-1100 PN:169556,148973
LLM12DH05替代GEMS捷邁ELS-1100TH小型光電液位開關 ELS-1100TH PN:153062,ELS-1100TH PN:153064
LLM12DH05替代GEMS捷邁ELS-1100HTS小型光電液位開關ELS-1100HTS PN:191341,ELS-1100HTS PN:191342
LLM12DH05替代GEMS捷邁ELS-1100TFE光電液位開關 ELS-1100TFE PN:187595,ELS-1100TFE PN:173800,ELS-1100TFE PN:185600,ELS-1100TFE PN:173700
LLM12DH05替代GEMS捷邁ELS-1100FLG光電液位開關 ELS-1100FLG PN:187575,ELS-1100FLG PN:187590,ELS-1100FLG PN:187585,ELS-1100FLG PN:187580
