1.5A降壓/升壓/反相DC-DC轉換器 DIODES AZ34063A
- 品牌：???DIODES
- 型號：???AZ34063A
Description
The AZ34063A is a monolithic switching regulator control circuit which contains the primary functions required for DC-DC converters. This device consists of internal temperature compensated reference,voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high current output switch.

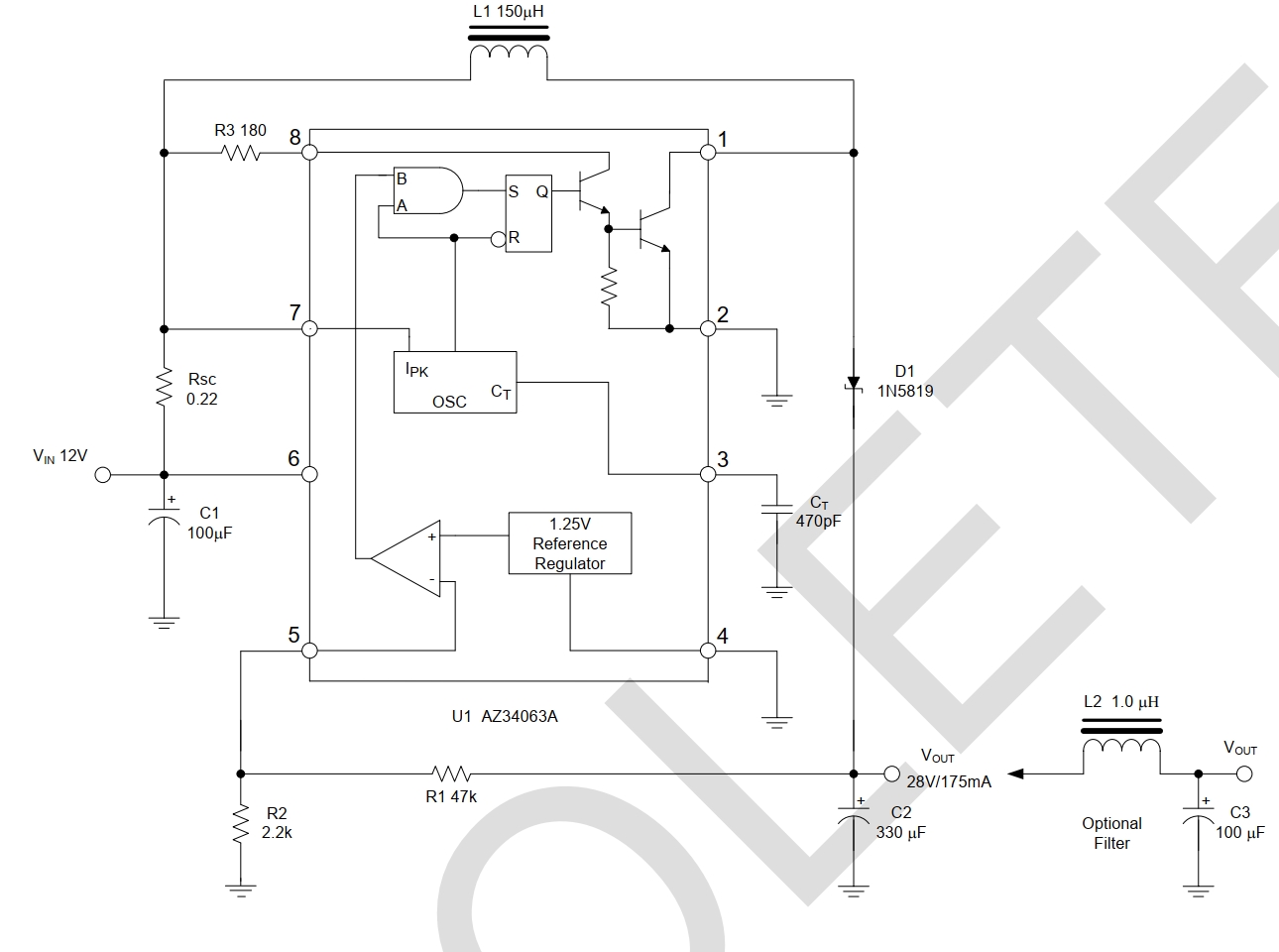

The AZ34063A is specifically designed as a general DC-DC converter to be used in Step-Down, Step-Up and VoltageInverting applications with a minimum number of external components.
The AZ34063A is available in 2 packages: SOIC-8 and DIP-8.
Features
? Operation from 3.0V to 36V Input
? Low Standby Current
? Current Limiting
? Output Switch Current to 1.5A
? Output Voltage Adjustable
? Operation Frequency up to 180kHz
? Precision 2% Reference
? For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
Applications
? Battery Chargers
? ADSL Modems
? Hubs
? Negative Voltage Power Supplies
我司是DIODES正式授權代理商，可以提供技術支持，需要技術資料與樣品可以向我司業務人員索取（13923795851孫生-微信同號）
